The standard order of colors on a traffic light is red (stop) at the top, yellow (caution) in the middle, and green (go) at the bottom. This vertical arrangement is universally standardized in the United States and governed by NEMA and MUTCD specifications to ensure consistent recognition by drivers across all jurisdictions.

Traffic lights operate under programmed timing conditions that account for vehicle detection, pedestrian demand, time of day, and intersection geometry. Conditions such as conflict, fault, or malfunction are monitored by Malfunction Management Units (MMUs) compliant with NEMA TS-1, NEMA TS-2, and ATC standards. When an unsafe condition is detected, the MMU intervenes to place the intersection in a safe flash mode.

An MMU is a cabinet-mounted device that continuously monitors traffic signal outputs to detect conflicting green indications or other unsafe conditions. Products like the EDI MMU-1600D and MMU2-1600GE support eight-phase dual-ring operation and comply with NEMA TS-1, NEMA TS-2, CALTRANS 33x, ATC, and ITS Cabinet standards, making them essential for safe intersection management.

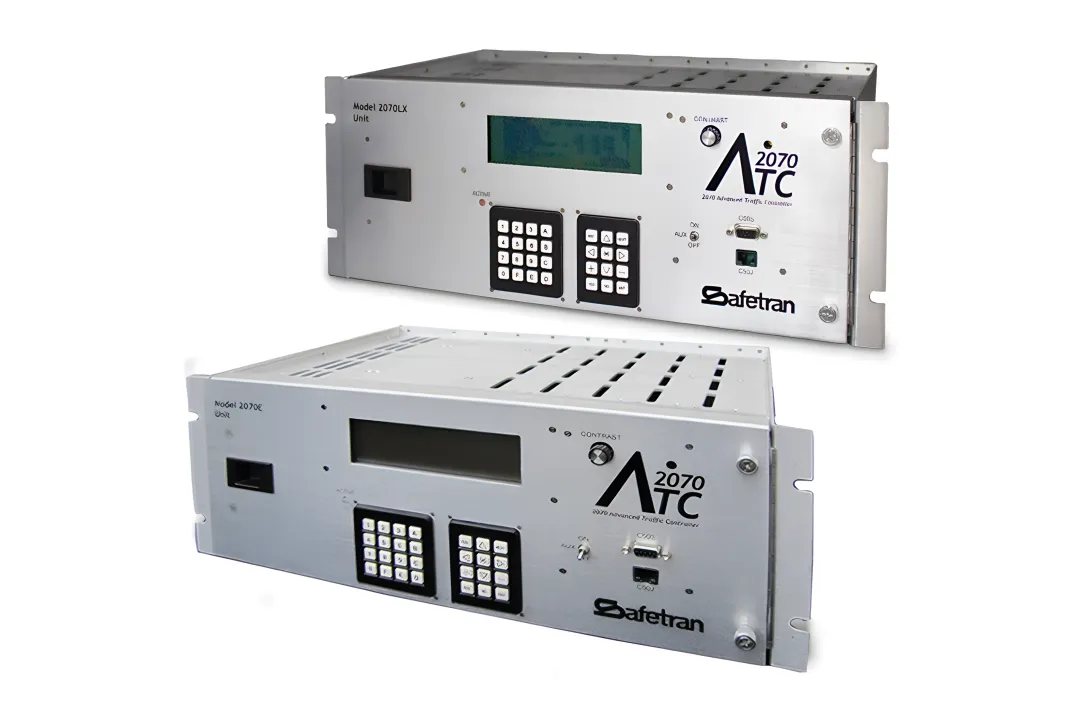

Traffic signal controllers must typically comply with NEMA TS-1, NEMA TS-2, and ATC (Advanced Transportation Controller) standards at the federal level. In California, Caltrans TEES 2020 and Caltrans 2070 specifications also apply. Econolite's Cobalt Series and 2070LX Series are designed to meet these requirements, supporting broad deployment flexibility across municipal and highway environments.

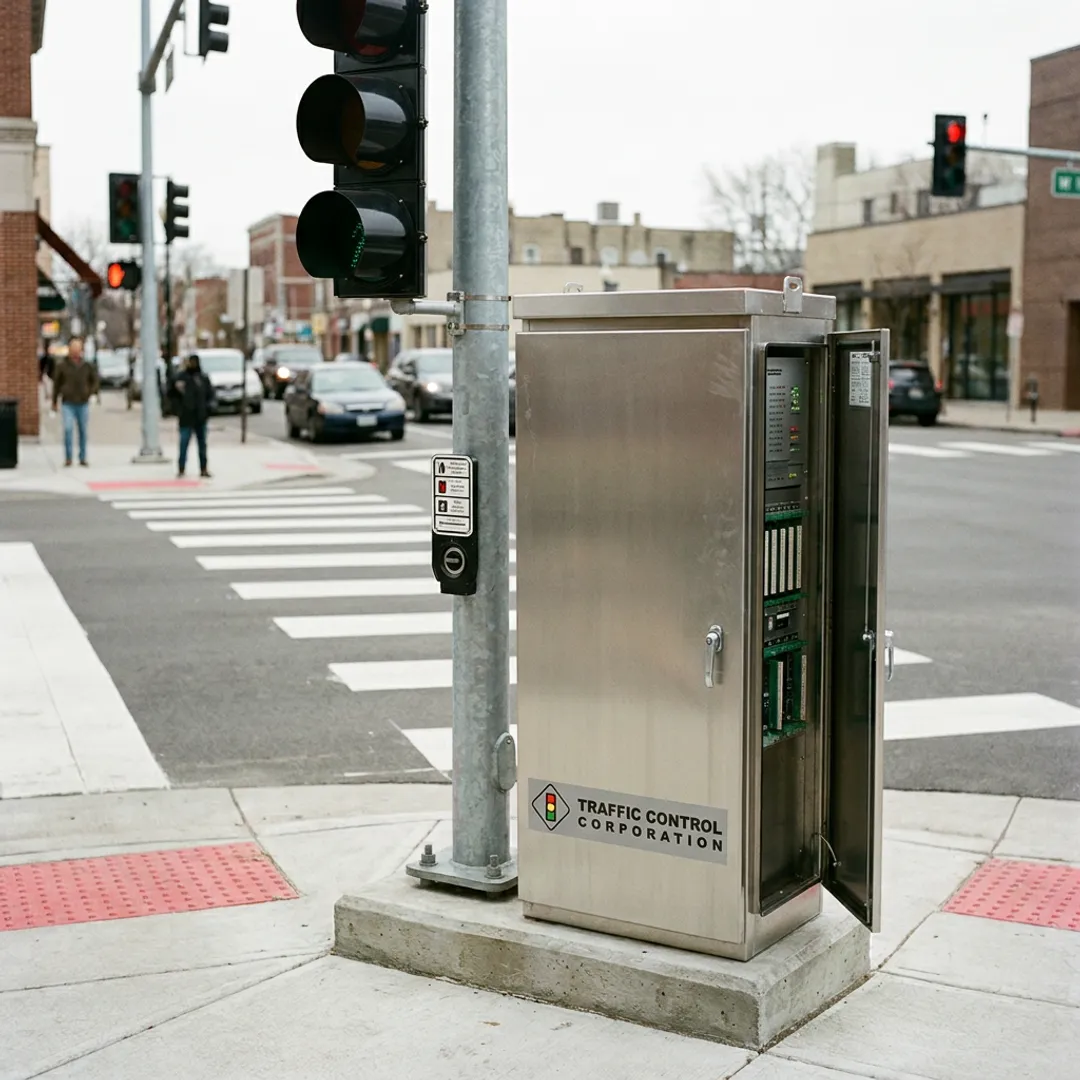

A traffic signal controller determines signal timing and phase sequencing based on programmed plans and vehicle detection inputs. A signal monitor (MMU) is an independent safety device that watches controller outputs and cuts power or forces flash mode if it detects a conflict. Both work together within a traffic cabinet to ensure safe and efficient intersection operations.

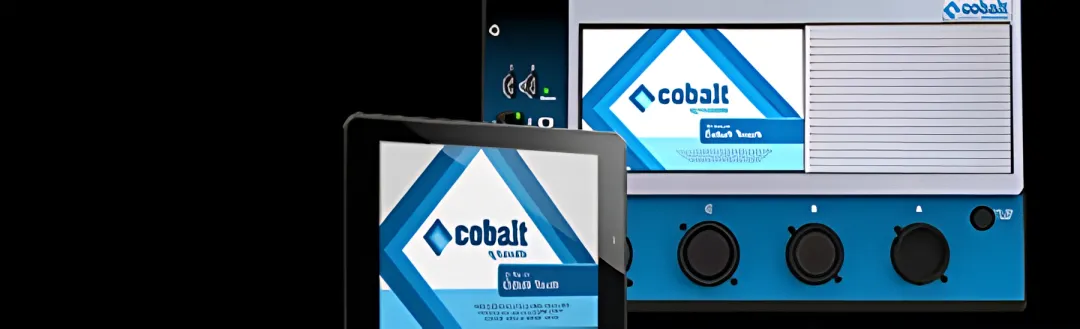

Yes. Modern controllers like the Econolite Cobalt Series and 2070LX Series are designed for integration with intelligent transportation systems (ITS) and smart city platforms. They support open architecture, Linux-based operating systems, and EOS Traffic Control Software, enabling real-time data exchange, centralized management, and connectivity with broader transportation network management systems.
