Warning Sign Beacons

LED-specific flasher controllers, like the WP6 used in JSF Technologies' beacon systems, are calibrated for the low current draw of LED arrays and are not intended for incandescent bulbs. Pairing an LED-rated controller with standard bulbs can cause erratic flash rates or controller damage, so equipment should always match its intended load type.

Yes, provided the electronic flasher is rated for LED current draw. JSF Technologies' beacon systems integrate the WP6 controller, a solid-state electronic flasher purpose-built for LED beacons and embedded signs, delivering consistent flash rates, adjustable intensity from 10% to 100%, and flash durations from 1 second to 99 days.

JSF Technologies beacons support solar power, AC with battery backup, or a combination of both, allowing installation in remote, off-grid locations as well as sites with existing electrical service. Battery backup keeps beacons operating during outages, while solar options reduce installation costs by eliminating trenching and wiring.

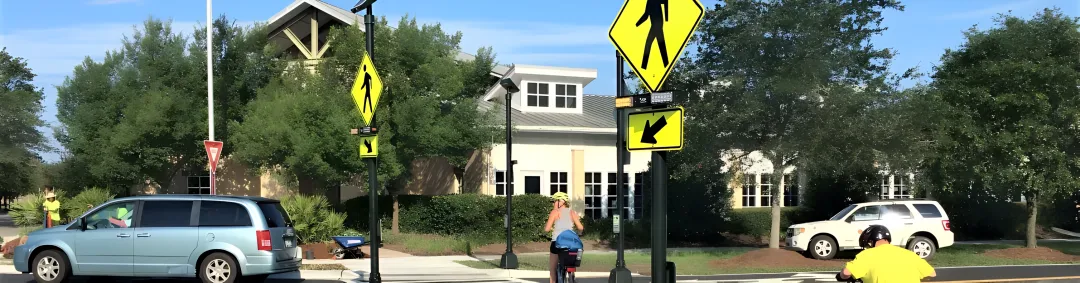

Round LED beacons produce continuous or scheduled circular flash patterns commonly used on warning and regulatory signs, while RRFBs use a rapid, irregular flash pattern in a rectangular housing proven to increase driver yielding at crosswalks. Both are available in 8-inch or 12-inch sizes and can be pedestrian-, vehicle-, or radar-activated.

Yes. JSF Technologies' beacons integrate with Applied Information's Glance Smart City Supervisory Platform via cellular or wireless connectivity, enabling remote monitoring, scheduling, power and lamp-failure alerts, and system-to-system flash synchronization across multiple intersections or corridors.

JSF Technologies' beacons and RRFBs are designed to align with MUTCD guidelines and FHWA-recognized pedestrian safety treatments, and APS-compliant activation stations support ADA accessibility requirements. Specific certification documentation is available upon request from JSF Technologies or Traffic Control Corporation.
