UPS Manual Bypass Switch

A 3-way transfer switch allows selection between three separate power sources, such as utility power, a generator, and a UPS or battery backup system. It uses mechanical or electrical interlocking to guarantee only one source is connected to the load at a time, providing flexible backup power configurations for critical infrastructure like traffic control cabinets.

Wiring involves connecting the incoming utility line, the backup source (generator or UPS), and the load output to their designated terminals per the manufacturer's wiring diagram, matching phase rotation and neutral/ground connections. Installation should follow NEC guidelines and be performed by a qualified electrician to ensure proper interlocking and safe operation.

The two primary types are automatic transfer switches (ATS), which sense power loss and switch sources without human intervention, and manual transfer switches (MTS), which require an operator to physically move a handle or switch to change power sources. Many UPS systems, like Alpha's line, offer both automatic and manual bypass options.

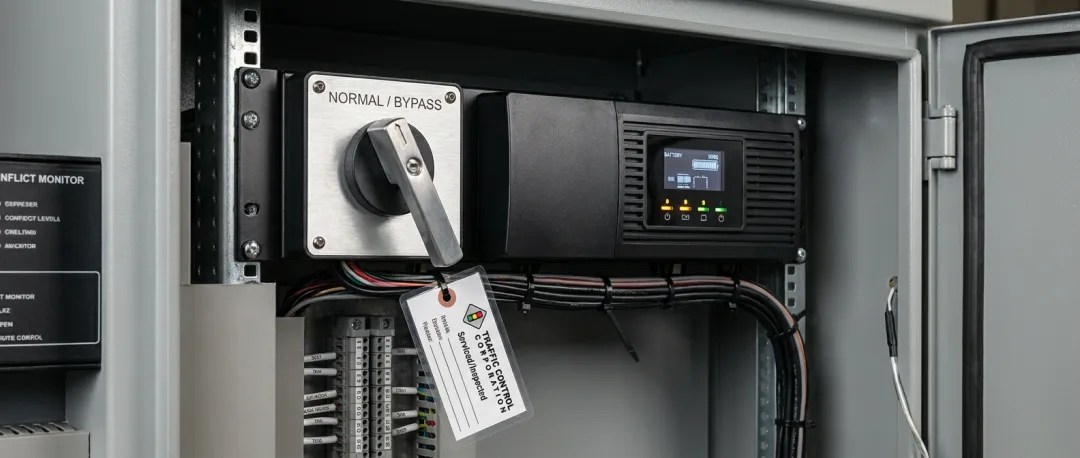

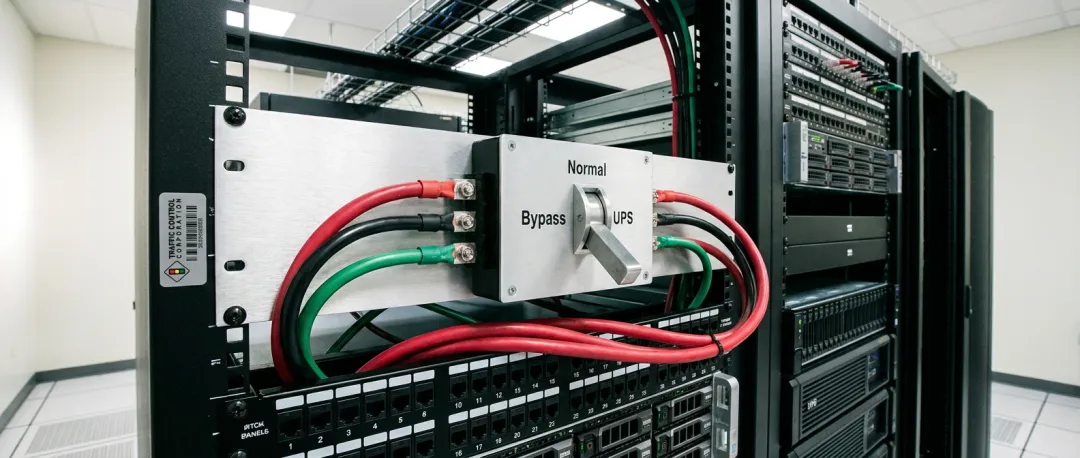

A UPS manual bypass switch routes power directly from the utility source to the load, bypassing the UPS entirely. This allows technicians to perform maintenance, repairs, or battery replacement on the UPS without interrupting power to critical equipment such as traffic signals, ITS controllers, or telecommunications gear.

Yes, external maintenance bypass switches, such as Alpha's 255A model, can typically be retrofitted to existing UPS installations. They are wired between the utility source, UPS, and load to enable safe isolation during service, and are compatible with a range of UPS systems including AMPS80 HP and other Alpha models.

Yes, when a properly rated manual bypass switch with electrical interlock is used, technicians can safely bypass a UPS while the load remains powered. The interlock design prevents simultaneous connection to both sources, protecting equipment from cross-connection while maintaining continuous power to critical AC loads during service.
