LED Strobe & Flashing Beacon Lights

A flashing beacon system is a networked assembly of LED beacons, controllers, and often LED embedded signs that activate together—via scheduling, radar, vehicle, or pedestrian triggers—to warn motorists of hazards. Systems like JSF Technologies' WP6-controlled units add wireless synchronization, remote monitoring, and smart city integration for coordinated, data-driven traffic safety management.

Beacons are typically available with solar power, AC with battery backup, or a combination of both. Solar-powered units eliminate the need for trenching and wiring, making them ideal for remote or off-grid locations, while AC-with-backup systems ensure continuous operation even during power outages.

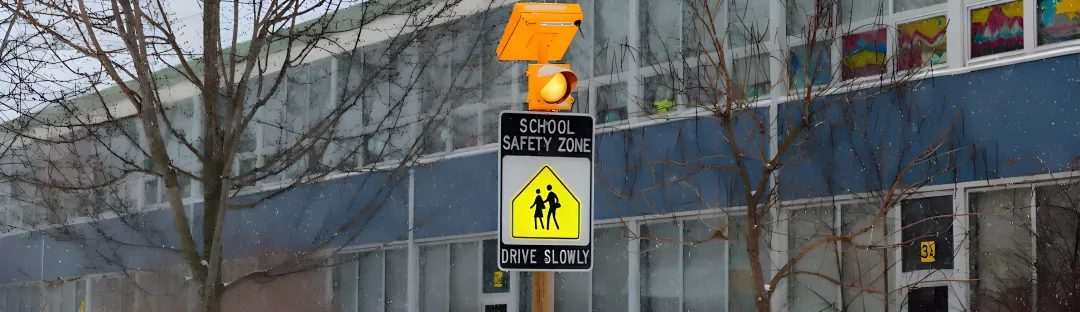

Radar- and vehicle-activated beacons only flash when a vehicle or pedestrian is detected, reducing driver desensitization that can occur with beacons that flash continuously. Continuous or scheduled beacons run on a 24-hour basis or fixed time windows, such as school arrival and dismissal periods, and are better suited for consistently hazardous locations.

Yes. Many LED beacon systems integrate with platforms such as JSF Technologies' ACMS and Applied Information's Glance\u00ae Smart City Supervisory Platform, enabling remote scheduling, power and lamp-failure monitoring, and automated text or email alerts, giving agencies real-time visibility into the health and performance of their beacon networks.

Systems using the WP6 Wireless Signal & Lighting Controller offer a wireless range exceeding 2,000 meters, with support for up to 1,664 independent radio networks and 64 channel selections. This allows multiple beacons across a wide area to flash in system-to-system synchronization for consistent, coordinated warning patterns.

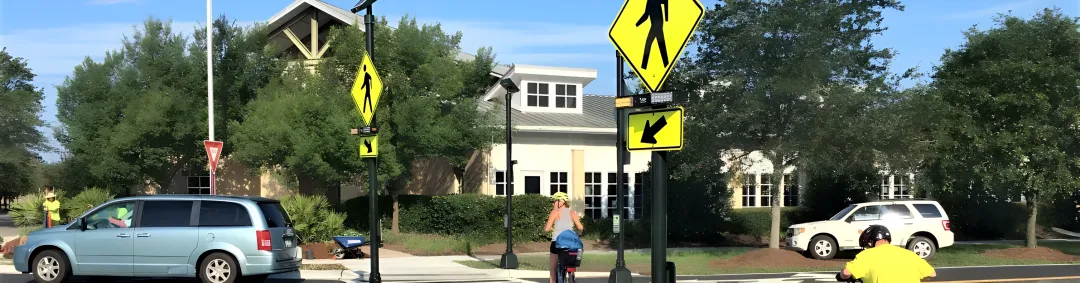

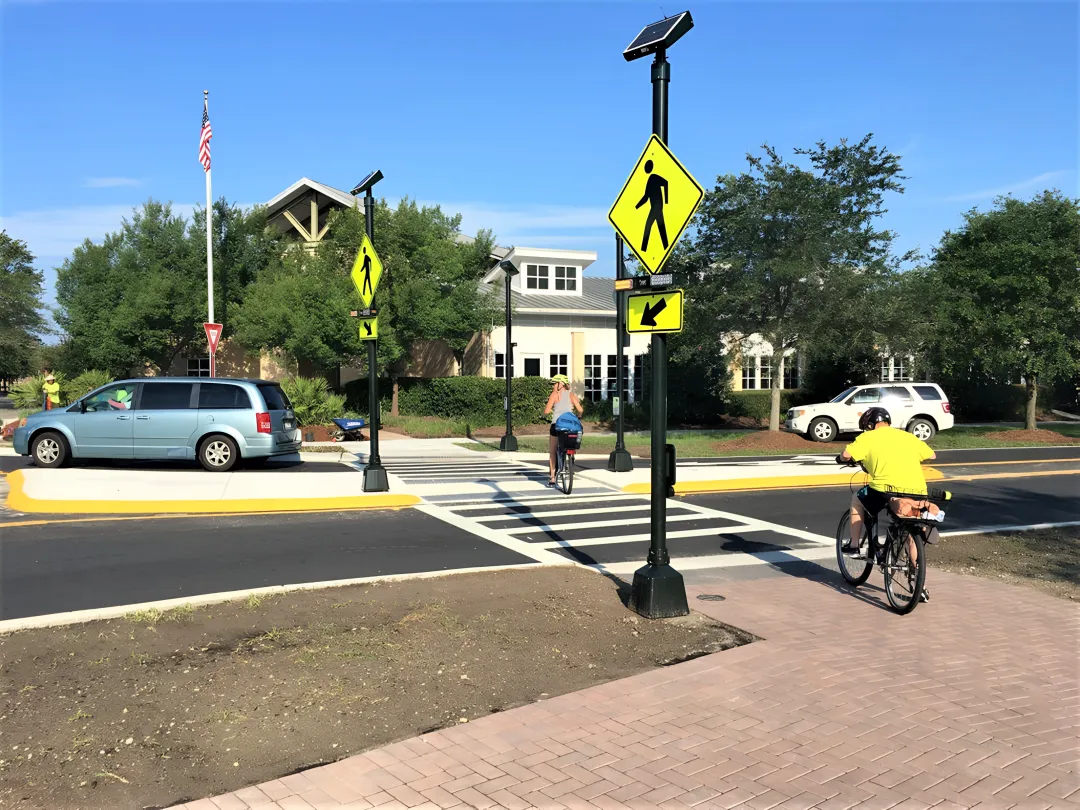

Beacon systems are designed to align with MUTCD guidance for advance warning and pedestrian crossing devices, including Rectangular Rapid Flashing Beacons recognized by the FHWA. Crosswalk systems with Accessible Pedestrian Signal features add audible, tactile, and visual cues to support ADA compliance for pedestrians with visual or hearing impairments.
