Inverter Cabinets

An inverter box, also called an inverter cabinet or enclosure, houses the UPS module, batteries, and transfer switch that convert stored DC battery power into AC power during outages. In traffic and ITS applications, these boxes are typically Type 3R rated aluminum enclosures designed to protect components from moisture, dust, and temperature extremes.

For traffic and ITS inverter cabinets, traffic-grade aluminum is the preferred material due to its corrosion resistance, lightweight strength, and durability outdoors. Aluminum enclosures also support pole and pad mounting options and withstand extreme temperature swings better than plastic or standard steel alternatives.

Alpha inverter cabinets support AlphaCell 195XTV, 240XTV, 3.5HP, and 4.0HP batteries, with capacity for up to four batteries per enclosure. This flexibility allows agencies to size battery backup capacity to match specific runtime requirements for traffic signals and ITS equipment during extended outages.

Runtime depends on the UPS module wattage (350W to 2000W) and the number and type of batteries installed. With up to four AlphaCell batteries, systems can sustain critical traffic signal and ITS operations through extended utility outages, sags, and brownouts until power is restored or a generator is connected.

Look for Type 3R rated enclosures, which meet NEMA/UL standards for outdoor protection against rain, snow, and dust. IMSA-affiliated products also indicate compliance with municipal traffic signal safety standards, giving added assurance for traffic and ITS deployments.

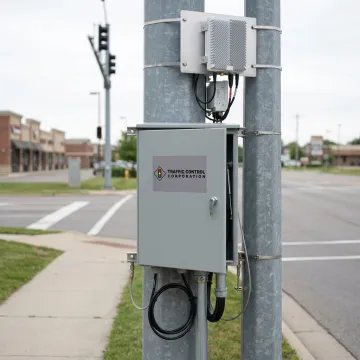

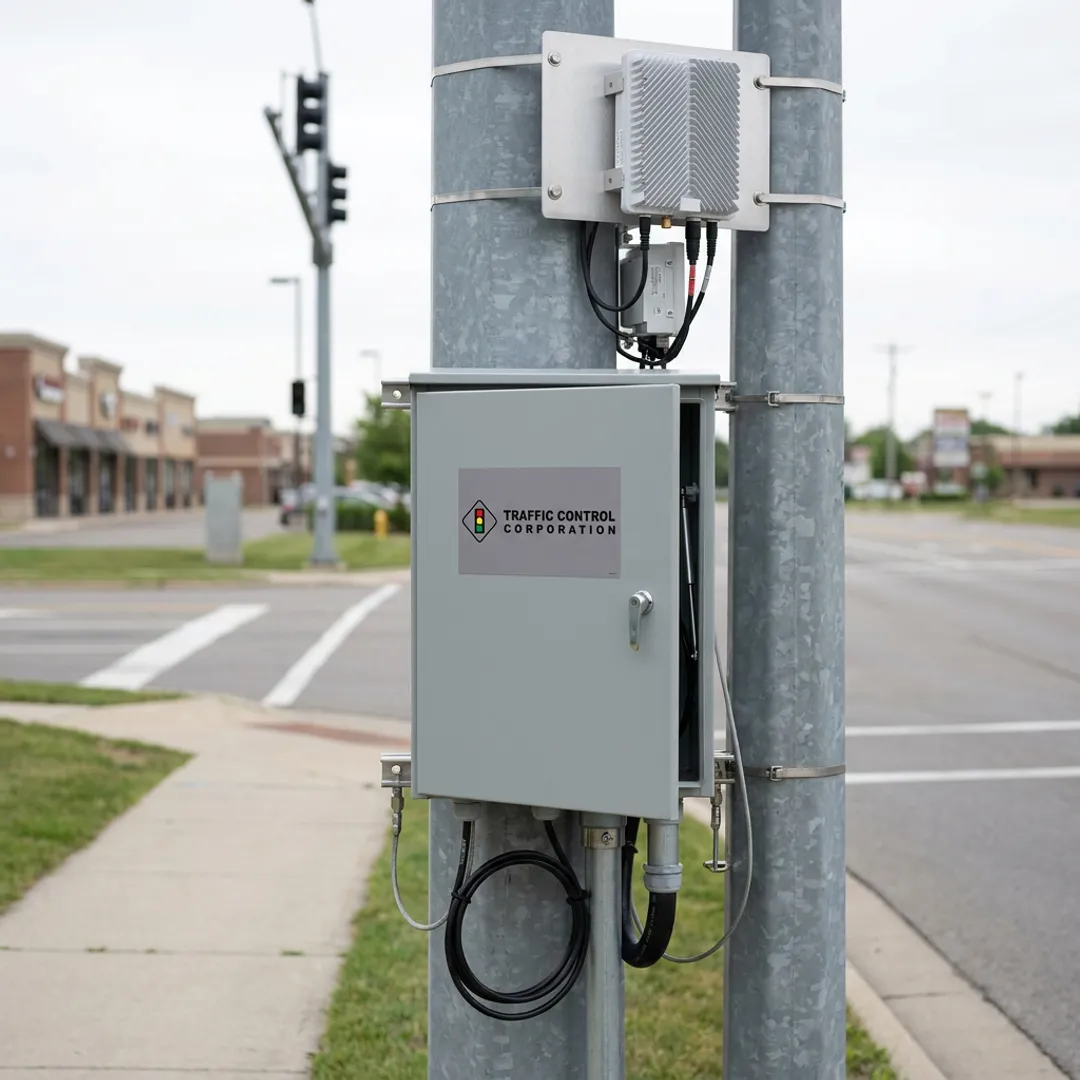

Yes, most inverter cabinets, including the SE48-1616 enclosure, offer multiple mounting options such as pole-mount and pad-mount configurations. This flexibility allows agencies to install backup power systems in the most practical location near traffic signal cabinets or ITS equipment.
