120V Power Relays

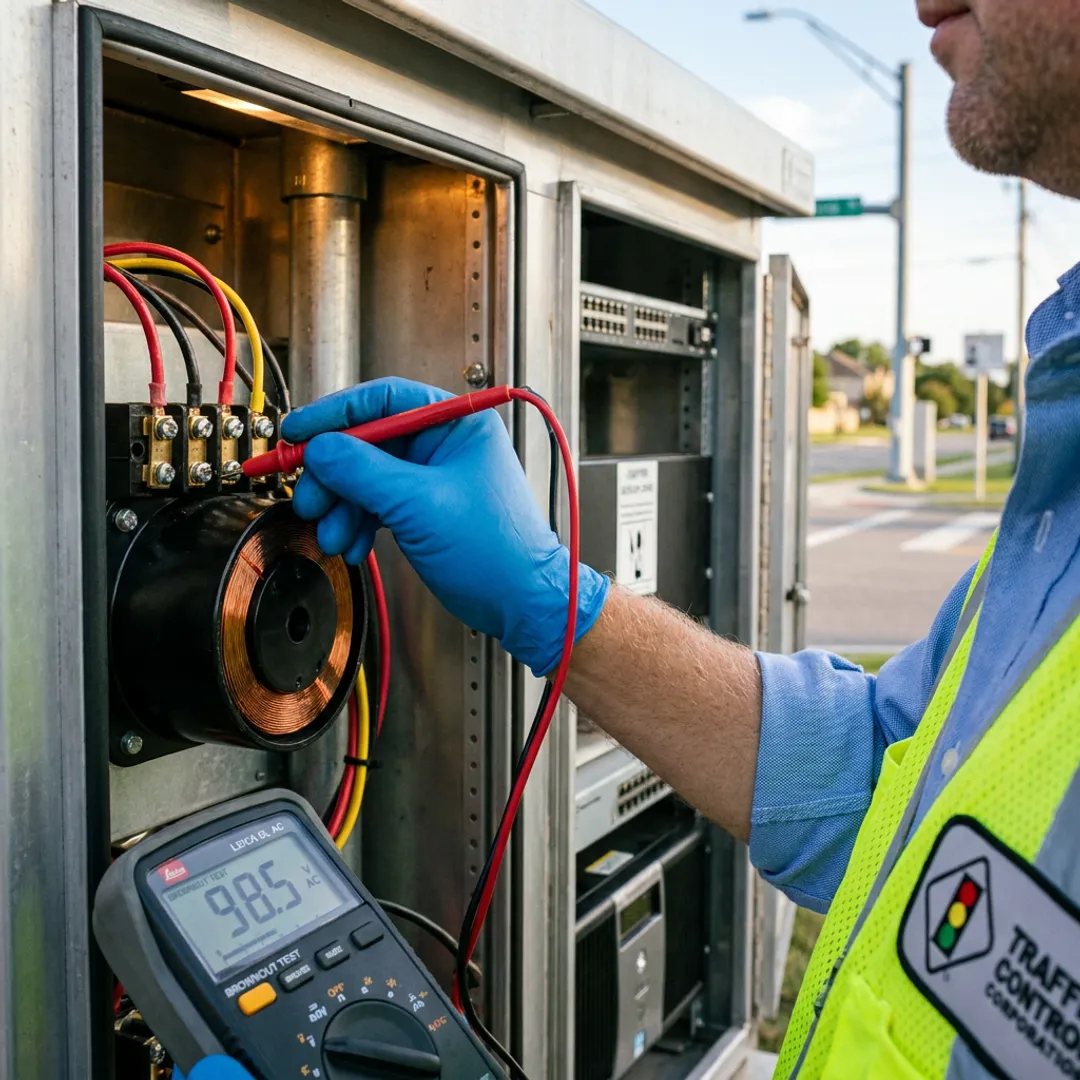

To test a 120V relay, use a multimeter to check coil resistance and continuity across the normally open and normally closed contacts. Apply 120VAC to the coil terminals and listen for an audible click while verifying contact switching with the multimeter. Always de-energize the circuit first and follow proper lockout/tagout safety procedures.

The voltage required depends on the relay's coil rating. A 120V power relay requires approximately 120VAC nominal to energize the coil reliably, though some designs, like transient-suppressed rectified coils, can operate down to 89VAC during brownout conditions without chatter or failure.

A relay's main purpose is to use a low-power control signal to switch a separate, often higher-power circuit, providing electrical isolation between control and load circuits. In traffic control systems, relays manage functions like flash transfer operations, ensuring signals switch reliably during power fluctuations or system faults.

The TR-200 features a transient-suppressed, full-wave rectified coil that enables chatter-free operation down to 89VAC, well below standard 120V nominal levels. This design prevents contact bounce and premature failure during voltage sags, making it reliable for traffic signal cabinets in areas prone to power instability.

The TR-200 Flash Transfer Relay uses a rear-mounted eight-pin polarized connector designed to mate securely with a Cinch-Jones 2408SB socket. This ensures a reliable, keyed connection that prevents misalignment during installation in traffic signal control cabinets.

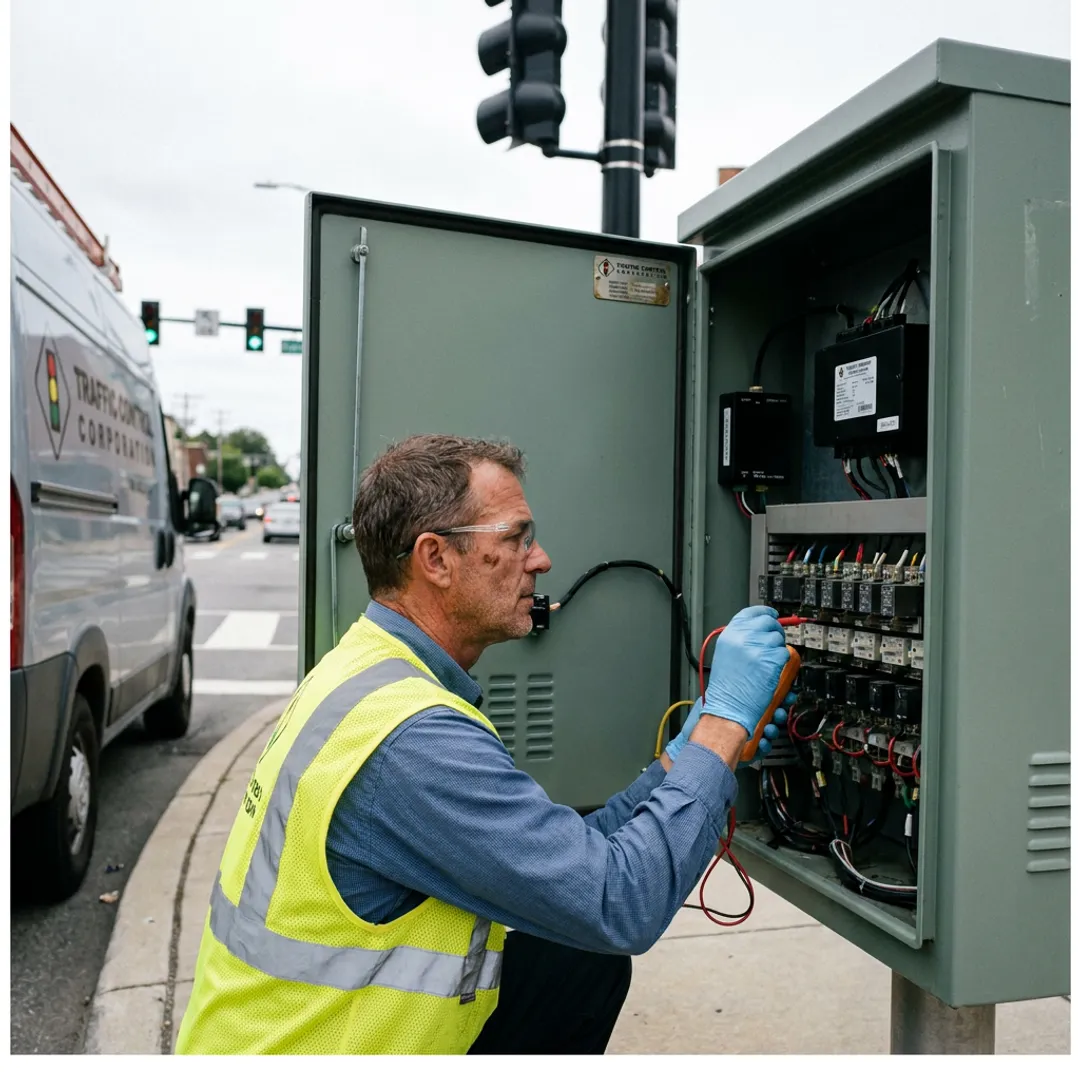

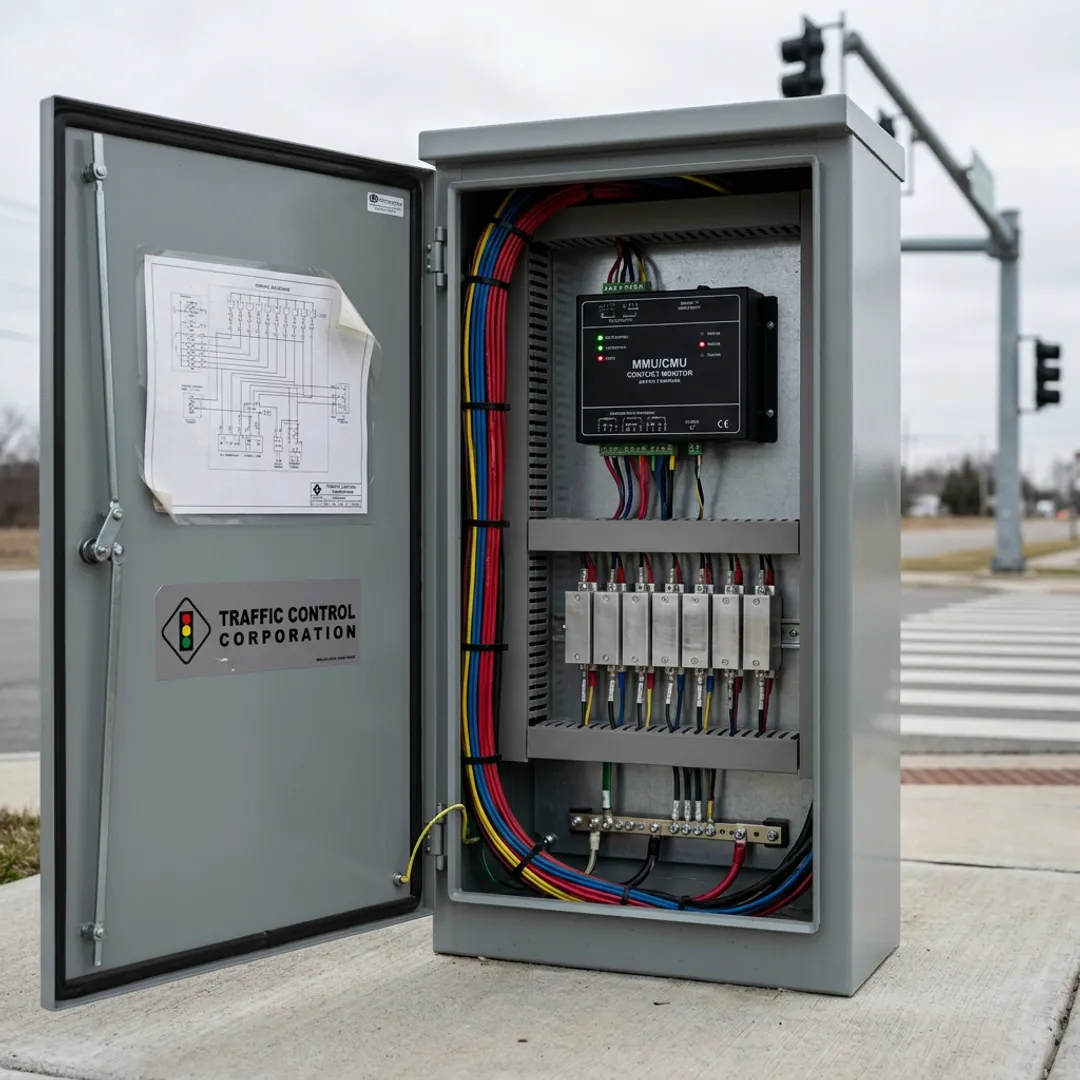

120V power relays are commonly used in traffic signal control cabinets to manage flash transfer operations, backup power switching, and intersection signal timing. They help maintain safe, continuous signal operation during power interruptions or maintenance activities at busy intersections.
