Pedestrian Warning Lights

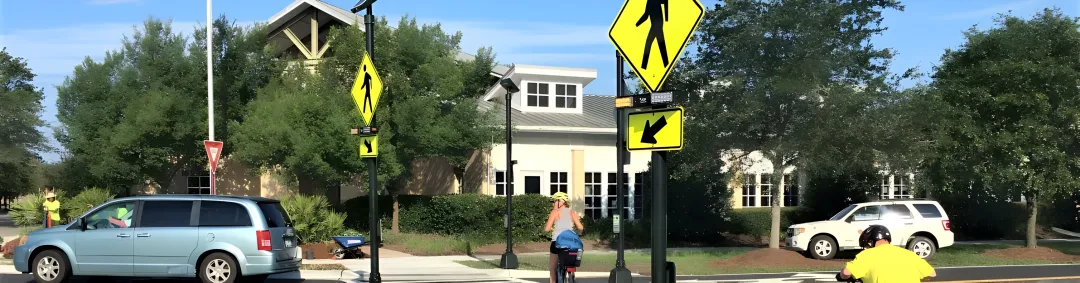

Pedestrian lighting refers to illumination systems designed to increase the visibility of people crossing roadways, including overhead crosswalk lighting, LED-embedded road markers, and flashing beacons. These systems improve nighttime and low-visibility safety by highlighting pedestrians to oncoming drivers at crosswalks, school zones, and intersections.

A pedestrian alert system detects when someone enters or approaches a crossing and automatically activates warning devices—such as RRFBs, flashing beacons, or LED signs—to notify drivers. Activation can be triggered by a push-button, radar sensor, or scheduled timing, reducing driver desensitization compared to constantly-on warning lights.

A Rectangular Rapid Flashing Beacon (RRFB) uses dual rapidly flashing LEDs in an irregular pattern to alert drivers at pedestrian crosswalks. Activated by a push-button or passive detection, RRFBs have been shown by FHWA studies to significantly increase driver yielding compliance compared to standard warning signs alone.

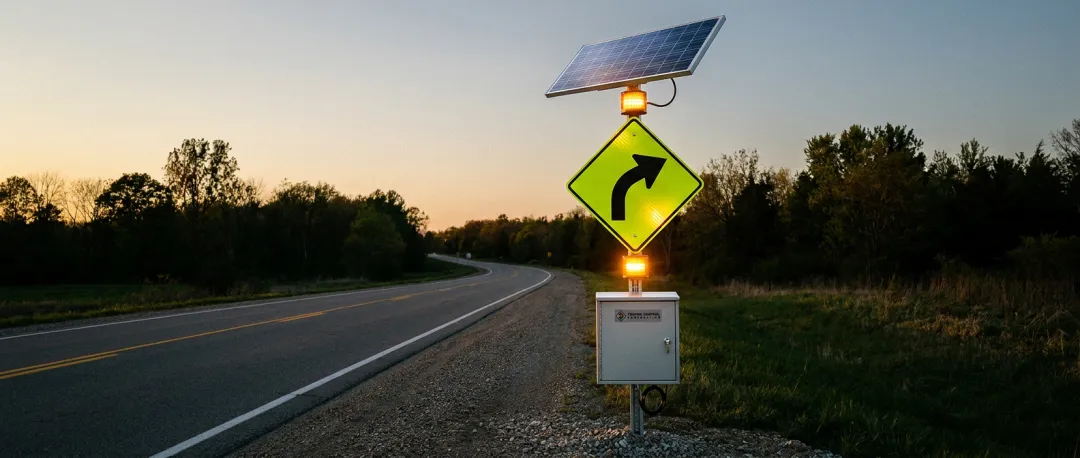

Many pedestrian warning light systems, including RRFBs and flashing beacons, are available with solar power options that eliminate the need for trenching and grid wiring. AC-powered models with battery backup are also available, offering flexibility for both remote installations and sites with existing electrical infrastructure.

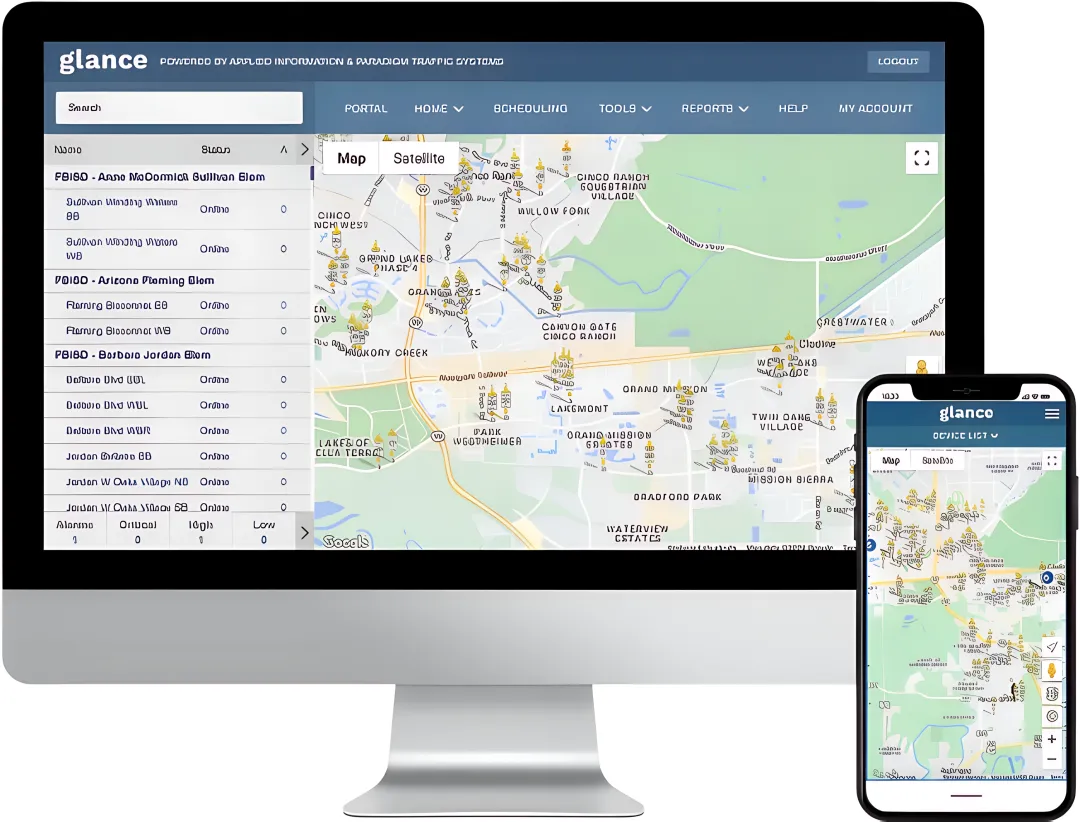

Yes. Systems like JSF Technologies' ACMS and Applied Information's Glance® platform allow agencies to remotely monitor power status, lamp failures, and battery health, adjust flash schedules, and receive automated text or email alerts—enabling proactive maintenance and reducing beacon downtime.

Pedestrian warning lights can be triggered through several methods: pedestrian push-button activation, radar or passive vehicle detection, scheduled time-based activation for school zones, or continuous 24-hour flashing. Many systems also support system-to-system flash synchronization across multiple connected units for coordinated visibility.
