Input/Output Panels

An output panel is a component that distributes and manages electrical outputs from a detection or control system to downstream devices, such as signal controllers or monitoring systems. It typically offers selectable active-high or active-low configurations via hardware jumpers, allowing integrators to match the panel's behavior to specific cabinet wiring and controller requirements.

A remote input/output panel is an I/O interface installed away from the main controller cabinet, communicating over network connections like Ethernet or WAN ports. It allows detection and control data to be transmitted from field locations back to a central controller or cloud-based analytics platform, supporting Smart City connectivity and distributed traffic management architectures.

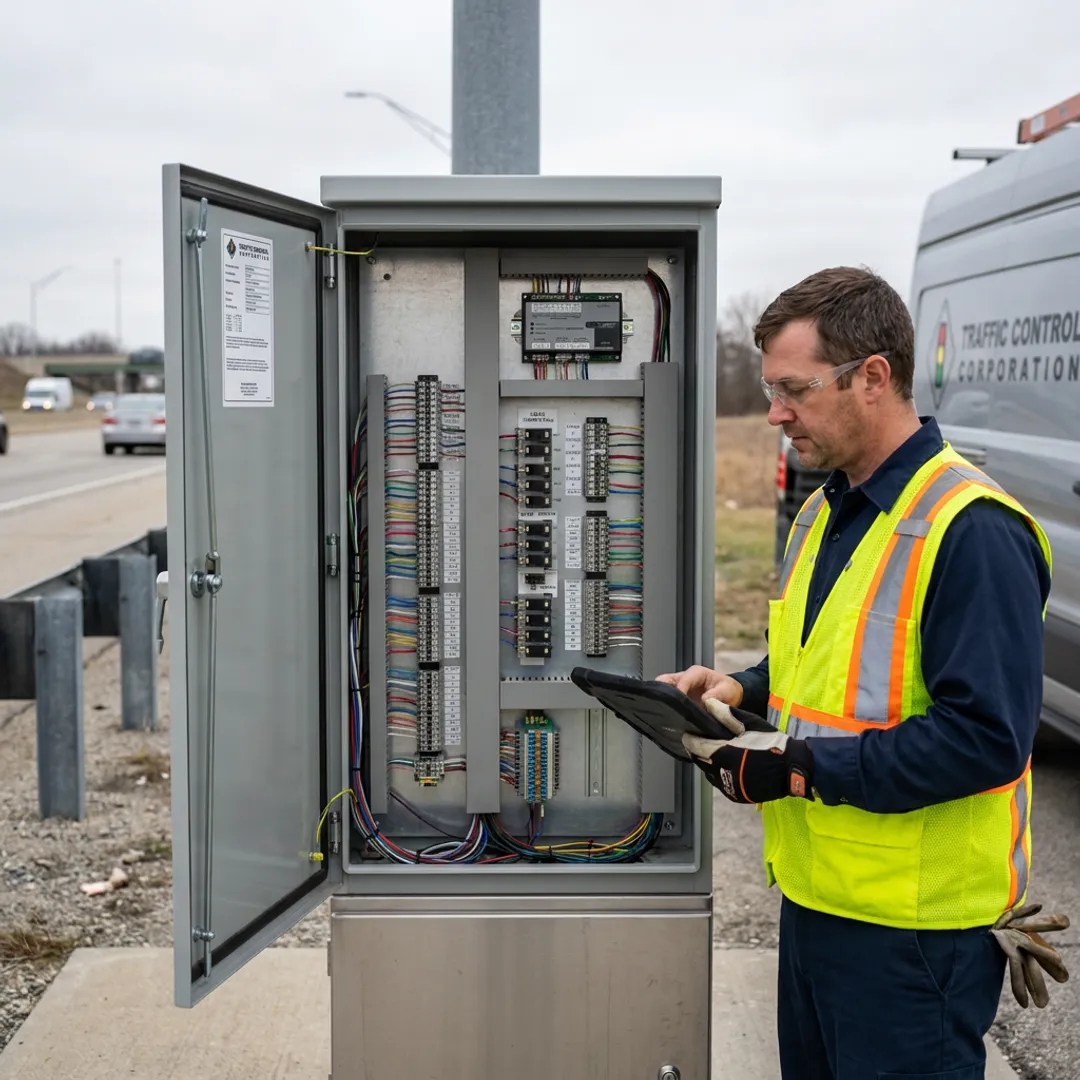

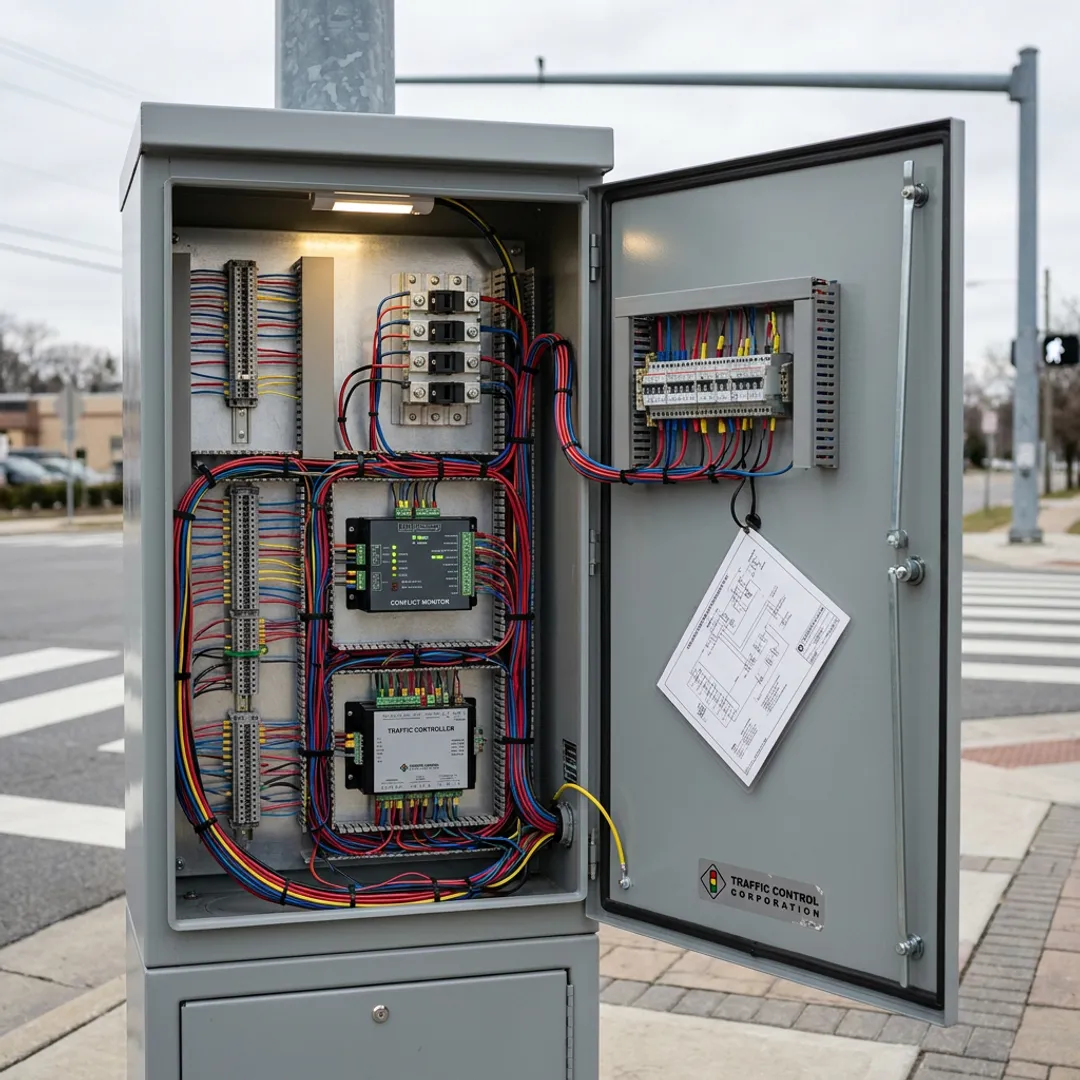

NEMA TS1 and TS2 refer to different traffic controller cabinet standards with distinct wiring layouts, connector types, and voltage specifications. TS2 cabinets generally support more advanced communication protocols and higher-density connectors than TS1. Backpanels designed to support both standards, like Econolite's, offer flexibility for agencies managing mixed cabinet inventories across their network.

Yes, most input/output panels are designed with modular architectures that allow simple installation into existing NEMA-compliant cabinets. Features like standardized connectors, hardware-configurable outputs, and compatibility with 24 to 48 VDC power inputs make it straightforward to retrofit panels into current infrastructure without extensive rewiring or cabinet modification.

Input/output panels typically operate on cabinet-supplied DC power, commonly in the 24 to 48 VDC range. Power is usually delivered directly through the cabinet's wired power connections, and panels are engineered to draw consistent power for continuous operation of detection processing, output switching, and network communication functions.

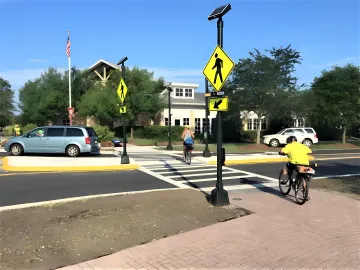

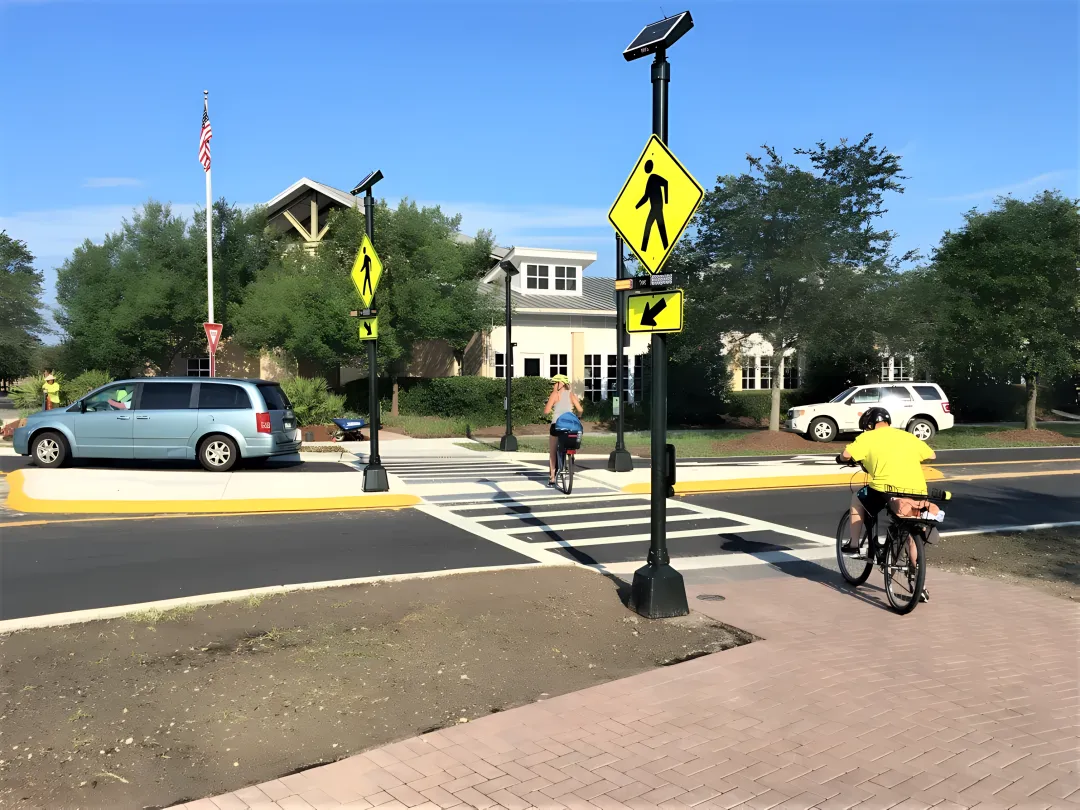

Many modern input/output panels, particularly those paired with AI-powered video detection systems, support classification and counting of pedestrians and bicycles alongside vehicles. This enables Vulnerable Road User identification, sidewalk monitoring, and enhanced data collection for signal timing optimization and Smart City traffic analytics platforms.
